Optically Clear Resin |
|
| |
|
| Description |

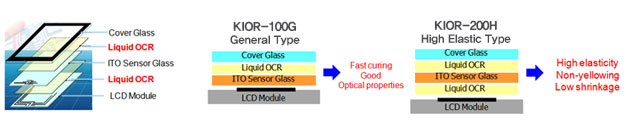

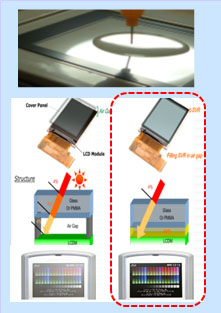

- Optically clear resin is enhanced brightness by reducing reflection of outside light.

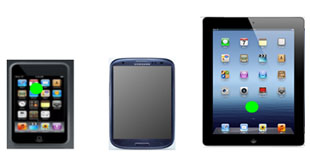

- Touch panel, Smart phone and Tablet PC is used as an optically clear liquid adhesives.
- Curing : UV Curable.
|
|
 |
Features
- Excellent optical properties
- High flexibility
- Fast curing
- Optically clear, non yellowing
- Dual curing capability UV and Thermal
- Stable dispensing and without bubbles
|
|
|
|
| |
|
|
| |
|
| Data Sheet |
| Applications |
Item |
KIOR-100G |
KIOR-200H |
| Products |
Grade |
Small Size(2”~5”) |
Middle Size(5”~20”) |
| Substrate |
Cover material |
Glass or PC |
Glass or PC, PMMA |
| Liquid Properties |
Appearance |
Clear |
Clear |
| Solid Content(%) |
100 |
100 |
| Viscosity (at 25℃), cps |
3,000±300 |
4,500±300 |
| pH |
6.0~7.0 |
6.0~7.0 |
| Specific gravity |
1.0~1.1 |
1.0~1.1 |
| Optical Properties |
Transmittance(%) |
91.65 |
91.73 |
| Haze(%) |
0.2~0.4 |
0.2~0.4 |
| Yellow Index |
1 |
0.9 |
| UV Curing |
Curing Condition (mJ/㎠) |
1,000~1,500 |
1,000~1,500 |
| Mechanical properties |
Elongation(%) |
360 |
420 |
| Adhesion strength (kgf/cm2) |
3.8~4.0 |
4 |
| Elastic Modulus (Pa) |
5.0X105 |
8.0X104 |
| Electrical Properties |
Dielectric Constant
60Hz, 25℃ |
2.9~3.0 |
2.9~3.0 |
| Shrinkage |
Volume Shrinkage(%) |
1.8 |
1.5 |
| Refractive Index |
After curing |
1.48~1.50 |
1.48~1.50 |
| Coating Property |
Stain, Pinhole, Bubble |
None |
None |
|
|
|
| |
|
|
