EMI Shield Film |
|
| |
|
| Description |

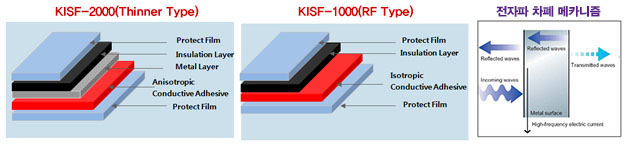

| Electromagnetic Noise Shielding Film is
consist of high conductive metal layer with insulation layer,conductive adhesive layer
Currently, FPCs are being widely used in laptop computer,PDA, electronic scheduler ,LCD,OLED,PDP and
mobile equipment for wiring because of its high bendability, high density in structure,
Additionally this FPCs requires magnetic nosie shielding
So in this reason, We developed high Flex, High Functional EMI Shield Film for meet customer needs. |
|
 |
EMI Shielding Film Offers:
- Halogen Free
- High Shielding Effect
- Excellent Chemical Resistance
- Excellent Heat Resistance(Solder)
- High Peel Strength(Bondingsheet)
|
 |
|
|
|
| |
|
|
| |
|
| Data Sheet |
| Properties |
Unit |
KISF1000 |
KISF2000 |
PC-5900(Competotor) |
| Thickness |
Insulation Layer |
um |
8 |
4 |
3.5 |
| Adhesive Layer |
um |
12 |
6 |
7 |
| Protect Layer |
Top |
um |
50 |
50 |
54 |
| Bottom |
um |
75 |
65 |
75 |
| Hot press |
Before |
um |
20 |
10 |
10 |
| After |
um |
18 |
8 |
8 |
| Peel |
ACP(ICP)-CL PI |
Kgf/10mm |
>1 |
>0.8 |
- |
| Conductivity(Flex type,0T) |
Ω |
0.6 |
0.7 |
0.7 |
| Conductivity(Rigid Flex,0.4T) |
Ω |
<1 |
<2 |
<5 |
| Shielding effect |
dB |
>50 |
>50 |
>50 |
| Solder Floating, Dipping |
Pass/NG |
o |
o |
Δ |
| Chemical Resistance |
De-lamination |
o |
o |
Δ |
| Pre-fixing |
Good/Bad |
Good |
Good |
Bad |
|
|
|
| |
|
|
